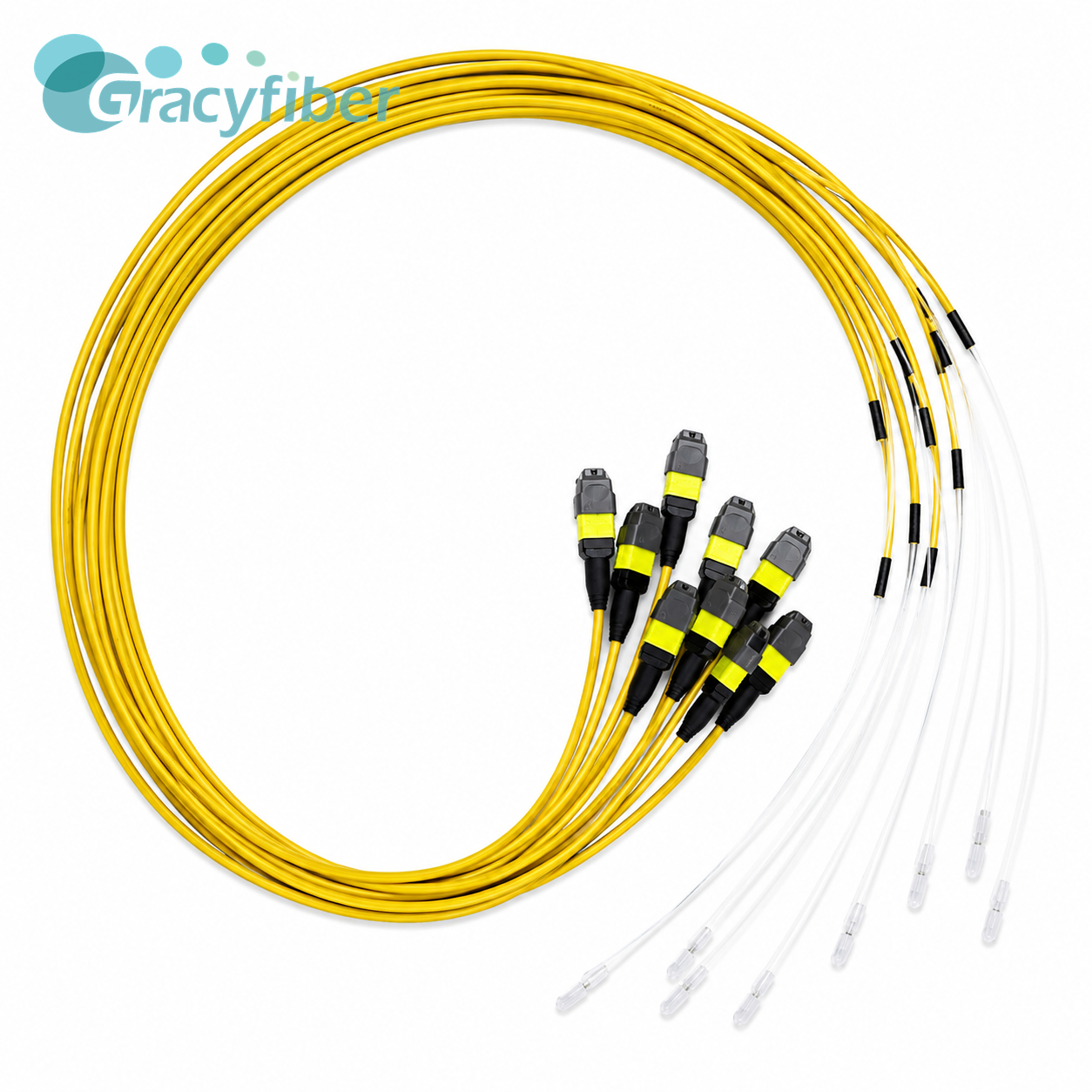

Custom 8 Channel SMFA 250P A0° Lidless Fiber Array Corning SMF-28e 2mm Yellow Tube MTP APC Female
1. Product Description
The 8CH Lidless SM Fiber Array to MTP/APC Female Assembly is designed for multi-channel optical coupling and compact fiber interconnection applications. It integrates an 8-channel single-mode fiber array with a 12-fiber MTP/APC female connector, using the middle eight MTP channels, positions 3 through 10.
2. Product Features
- 8-channel single-mode fiber array
- Lidless fiber array configuration
- 250 μm fiber pitch
- A0° configuration
- Corning SMF-28e fiber
- 12-fiber MTP/APC female connector
- Middle 8 MTP channels used
- MTP channel positions 3–10
- Insertion loss <0.3 dB
- Return loss >50 dB
- Fiber array size: 10 * 3.5 * 1.5 mm
- Overall length: 100 ±10 cm, including connector
- 2 mm yellow loose-tube protection
- Ribbonized multi-fiber assembly
- Foam protection with self-adhesive fixation
- Carton packaging
3. Applications
- Optical transceiver assemblies
- Silicon photonics coupling
- Photonic integrated circuit interconnection
- Multi-channel optical modules
- Fiber array coupling systems
- MTP-based optical interconnection
- Optical testing and alignment systems
- Compact passive optical assemblies
- High-density fiber routing
- Customized fiber-to-device coupling
4. FAQ
Q1: Why does this 8-channel fiber array use a 12-fiber MTP/APC connector?
The assembly uses a standard 12-fiber MTP/APC female connector, while only the middle eight positions are populated for the 8-channel fiber array. The active positions are channels 3 through 10, leaving the two outer channels on each side unused.
Q2: What is the advantage of the lidless fiber array design?
A lidless fiber array leaves the optical coupling surface directly accessible, which can simplify alignment and integration in applications such as optical modules, photonic devices, and fiber-to-chip coupling assemblies.
