High Density Lidless Fiber Array 1CH 2CH 4CH 8CH 12CH 16CH 24CH 32CH For Silicon Photonics

  • 1
  • 2
  • 3

Place of Origin : Guangdong , China

Brand Name : Gracyfiber

Certification : ISO9001 , ROHS

MOQ : 100pcs

Payment Terms : L/C,T/T

Delivery Time : 5-8 work days

Supply Ability : 100,000 pieces per month

Channel Configurations : 1CH, 2CH, 4CH, 8CH, 12CH, 16CH, 24CH, 32CH

Operating Wavelengths : 460nm, 630nm, 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm, 1650nm, 1950nm

Fiber Pitch : 250μm, 127/250μm, 127μm

Insertion Loss : ≤0.5dB (Typical 0.3)

Return Loss : UPC≥45, APC≥55

Operation Temperature : -5~65°C

Contact Now

Lidless Fiber Array (1CH, 2CH, 4CH, 8CH, 12CH, 16CH, 24CH, 32CH) For Silicon Photonics, PLC, AWG, And Optical Modules

Product Description

This Lidless Fiber Array is a capless fiber array assembly designed for high-precision optical coupling and compact photonic packaging applications.

High Density Lidless Fiber Array 1CH 2CH 4CH 8CH 12CH 16CH 24CH 32CH For Silicon Photonics

Key Features
Parameter Unit 1 2 4 8 12 16 24 32
Wavelength nm 460,630,780,850,980,1060,1310,1550,1650,1950
Materials - Pyrex, Tempax, Quartz, Silicon
Lid Option
Lidless
CorePitch - - 250 127/250 127/250 127/250 127 127 127
Core Pitch Tolerance μm +/-0.3 +/-0.5
Polish Angle Degree 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°)
Angle Type - A Type or V Type
Insertion Loss dB ≤0.5(Typical 0.3)
Return Loss dB UPC≥45, APC≥55

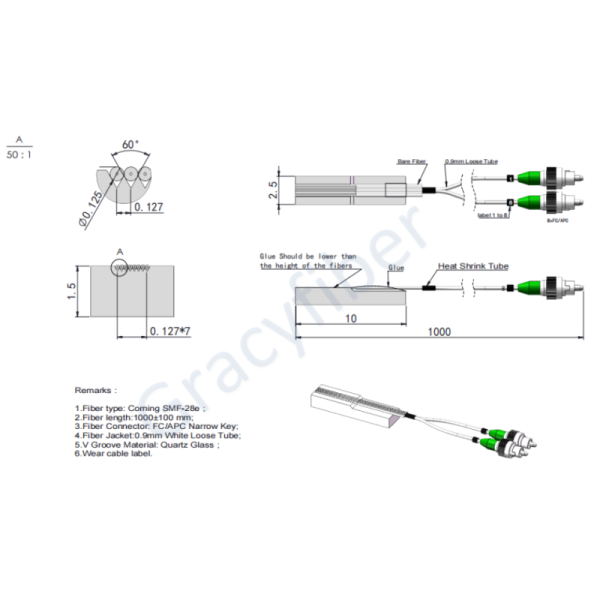

FA Dimension W mm 2.5 2.5 2.5 2.5 3.5 3.5 5.7 5.7
H mm 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
L mm 10 10 10 10 10 12 12 12
- - Standard or Customized
Fiber Type - OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized
Fiber Coating um 250 µm / 900 µm loose tube / ribbon (optional)
Fiber Type Length cm 100+/-10 or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports various array configurations ranging from 1CH to 32CH
  • Features a Lidless (capless) structural design
  • Suitable for multiple operating wavelengths ranging from 460nm to 1950nm
Applications
  • Silicon Photonics Chip Coupling
  • PLC Optical Splitters
  • AWG Wavelength Division Devices
  • Optical Module Packaging
  • High-Density Fiber Array Interconnects
  • Optical Testing Platforms
  • OEM Optical Communication Components


FAQ

1. Does OEM/ODM customization support this product?

Yes. This product can be customized in terms of materials, number of channels, core pitch, core pitch tolerance, polishing angle, A-Type/V-Type angle structure, fiber type, coating, fiber length, connectors, and dimensions. Optional materials listed on this page include Pyrex, Tempax, Quartz, and Silicon. Connector options include FC, LC, SC, E2000, MT, MPO, and MMC.


2. What information is required before requesting a quote or placing an order?

We recommend providing: number of channels, operating wavelength, core pitch, core pitch tolerance, polishing angle, chip or module interface drawing, fiber type, coating specifications, fiber length, connector type, insertion loss/return loss requirements, application scenario, and expected purchase quantity. The more complete the information, the faster we can assess manufacturability, provide a quote, sample lead time, and bulk delivery options.

High Density Lidless Fiber Array 1CH 2CH 4CH 8CH 12CH 16CH 24CH 32CH For Silicon Photonics
